קורא אשראי PIN PAD EMV

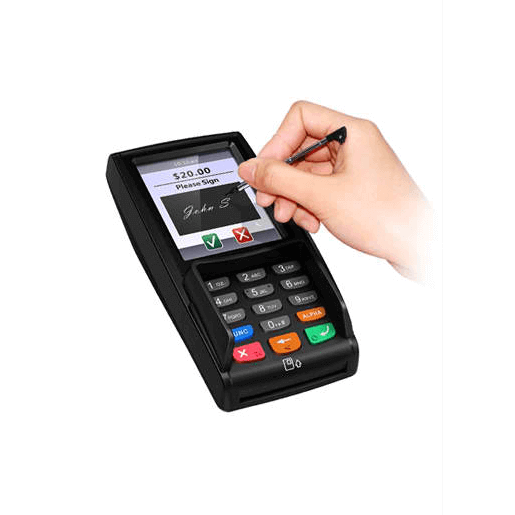

The S300 is the latest integrated retail payment solution for multilane merchants who wish to offer high levels of transactional security combined with contactless, e-Signature, magnetic stripe and Chip & PIN. With state of the art levels of security design, including PCI PTS 3.x and SRED, the S300 protects and encrypts all transaction information. Featuring a large colour touch screen and loudspeaker, the S300 comes with a 32- bit ARM11 processor and massive amounts of memory for exceptional multimedia performance. With USB and LAN connectivity options, the S300 offers everything merchants could want in a sleek, stylish payment device.

תיאור

תכונות

Processor
32-bit ARM11
Memory
192MB
Display
3.5 inch
Keypad
10 numeric keys, 5 function keys
Back-lighting
Magnetic Card Reader
Track 1 / 2 / 3, bi-directional
Smart Card Reader
EMV L1 & L2
Certifcations
PCI PTS 4.x, SRED
EMV Contact L1 & L2
EMV Contactless L1
Visa payWave
MasterCard Contactless
AMEX Expresspay
Discover D-PAS
JCB J/Speedy
Interac Flash
MasterCard TQM

נתונים טכניים

Physical
Length: 167mm
Width: 81mm
Height: 50mm
Weight
290g

תקשורת

Card Slots
3 SAMs
Audio
Speaker, 90dB
Communication Cable
Single multi-port connector which supports up to:
1 x RS232 + 1 x USB2.0 Device + 1 x Ethernet

הורד
