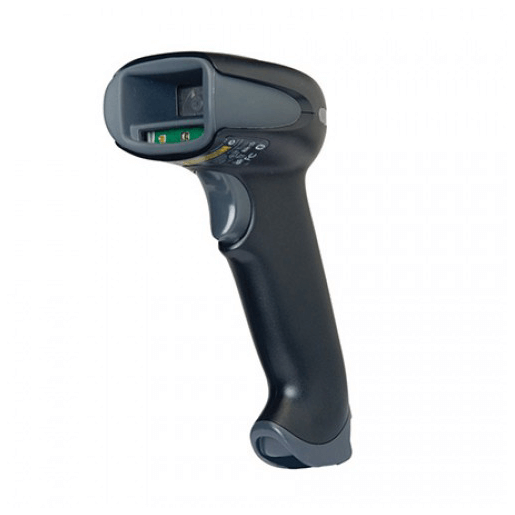

סורק ברקוד Honeywell 1900HD XENON 1D/2D

The Xenon™ 1900 series, featuring sixth-generation Adaptus™ area-imaging technology, has redefined the standard for handheld scanners. With its custom sensor that’s optimized for aggressive barcode scanning, the Xenon series offers industry-leading performance and reliability for a wide variety of data collection applications.

תיאור

תכונות

Input Voltage
1900/1900C : 4 VDC to 5.5 VDC

OPERATING POWER
1900/1900C : 2.3 W /450mA @ 5 VDC/
1902/1902C Scanner: N/A
1902/1902C Base:

Charging 5 W (1A @ 5 V)
Non-Charging 0.5 W (0.1A @ 5 V)

Standby Power
1900/1900C : 0.45 W /90mA @ 5 VDC/

Battery
1902/1902C: 1800 mAh Li-ion /minimum/

Expected Operation Time
1902/1902Ci: 14 hours

Expected Charge Time
1902/1902C: 4.5 hours

Number of Scans
1902/1902C: 50,000 scans per charge

Host System Interfaces
1900/1900C : USB, Keyboard Wedge, RS232, IBM 46xx /RS485/
1902/1902C Scanner: N/A
1902/1902C Base: USB, Keyboard Wedge, RS232, IBM 46xx /RS485/

BLUETOOTH
1902/1902C Radio/Range: 2.4 to 2.5 GHz /ISM Band/ Adaptive Frequency – Hopping Bluetooth v2.1; Class 2:10 m /33 ft/ line of sight
1902/1902C Data Rate /Transmission Rate/: Up to 1 Mbit/s

נתונים טכניים

• Dimensions LxWxH
1900/1900C – 1902/1902C Scanner: 104 mm x 71 mm x 160 mm
1902/1902C Base: 132 mm x 102 mm x 81 mm
• Weight
1900/1900C: 147 g
1902/1902C Scanner: 214 g
1902/1902C Base: 179 g

תקשורת

• RJ-45 phone jack connector
• USB

הורד

User's ManualDownload
Xenon 1900 Area-Imaging ScannerDownload
Xenon 1900 Color Area-Imaging ScannerDownload
Xenon1902&Granit1911i Cordless Base and Access Point std SWDownload
Xenon 1902 cordless scanner Standard FirmwareDownload
