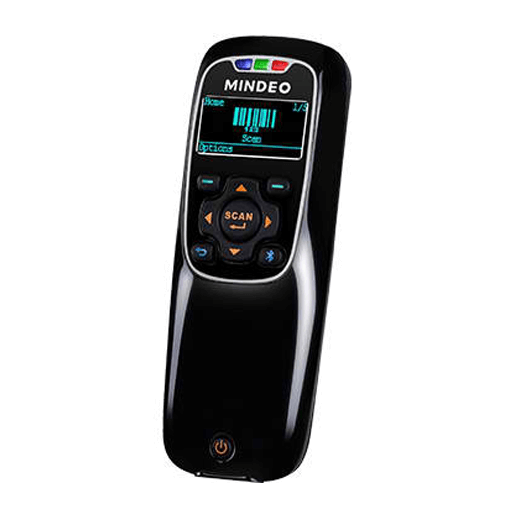

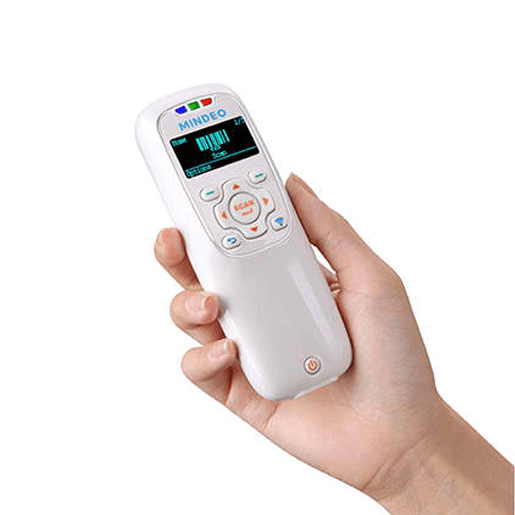

סורק ברקוד אלחוטי MINDEO MS3690 1D

Compact size, portable design
Easy to program: A SDK based on C is provided including user-friendly IDE & fully functional APIs
Highly freedom provided by efficient Bluetooth communication technology
Suitable to operate in diverse working environment
Light-weight design contributes to excellent mobility
Intelligent barcode sorting technology with high capacity storage capacity
Support multi-line screen display with backlight
Easy firmware upgrade
Flexible software customization

With Bluetooth or Wi-Fi module, optional
With Laser engine (MS3690-1D) or Image scan engine (MS3690-2D), optional

תיאור

תכונות

Working range
Bluetooth: 30m (line of sight), Wi-Fi: 100m (line of sight)
Radio link
Bluetooth: 2.4–2.5GHz, Bluetooth 4.0/3.0/2.1+EDR, Class 2
Wi-Fi: 2.4GHz, compliant with Wi-Fi IEEE 802.11 b/g/n protocol standards
Data storage
4MB for out of range batch: 250,000 barcodes
8MB for data batch mode: 500,000 barcodes
76MB for U Disk mode: 5,000,000 barcodes
Keyboard layout
USA、Turkish F/Q、French、Italian、Spanish、Slovak、Denmark、Japanese、German
Scan engine
uE966
Light source
650nm visible laser diode
Scanning angle
±50°, ±65°, ±35° Skew、Pitch、Roll
Scanning rate
100±10 times/second
Barcode contrast
minimum 20%
Decode capability
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39,
Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, Code 93, Code 11(USD-8),
MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post,China Finance, GS1 DataBar(formerly RSS)variants

נתונים טכניים

Dimensions
12.5cm×4.6cm×3.1cm
Weight
115g
Color
Gray/Black/White/Customization
Case material
ABS
Indicator
Beeper、LED、Vibrator
Display
OLED display(128×64)with LED backlight

תקשורת

Interface
Bluetooth: HID keyboard, SPP, BLE slave/master
Wi-Fi: Station mode, Access Point mode
USB: USB HID keyboard, USB virtual COM, U Disk
Input voltage 5±5%V
Operating current
Bluetooth: 4 mA sleeping, 75 mA working, 135 mA scanning
Wi-Fi: 4 mA sleeping, 127 mA working, 187 mA scanning
Battery 1900 mAh Lithium-ion battery, Charge current:500 mA , Charge time: Fully charged in 4 hours
Standby time 18 days
Operating time Bluetooth: 22 hours, Wi-Fi: 13 hours, based on 1 scan/5 seconds
